4 Essential Things to Know Before Installing a Cassette AC
A cassette air conditioner can be an excellent cooling solution for offices, showrooms, restaurants, retail stores, conference rooms, and other commercial spaces. Unlike a conventional wall-mounted split AC, a cassette AC is installed into or around the false ceiling and distributes cool air across the room, making it suitable for larger spaces that require more uniform airflow.
However, choosing the right capacity is only one part of a successful cassette AC installation. False ceiling clearance, drainage, indoor unit placement, refrigerant piping, and electrical requirements all need to be considered before installation.
Poor planning can result in drainage problems, uneven cooling, excessive noise, difficult maintenance, or unnecessary installation costs.
Here are four important things you should check before installing a cassette AC.
1. Check False Ceiling Clearance
One of the first things to consider when installing a cassette air conditioner is the available space above the false ceiling.
The indoor cassette unit is positioned above the visible ceiling panel, while the decorative panel remains visible from inside the room. Therefore, there must be sufficient space above the false ceiling to accommodate the indoor unit, refrigerant piping, drain piping, electrical connections, and other installation requirements.
Why is false ceiling clearance important?
Insufficient space can make installation difficult and may cause problems with:
Refrigerant pipe routing
Condensate drain piping
Electrical connections
Drain pump operation
Air circulation around the indoor unit
Future servicing and maintenance
Before finalizing the false ceiling design, check the installation manual and dimensional requirements of the specific cassette AC model.
Do not assume that every cassette AC has the same dimensions or clearance requirements.
Tip for new installations
If you are constructing a new false ceiling, involve the AC installation team before the ceiling framework is finalized. This allows the AC location, service access, piping route, and ceiling opening to be planned properly.
2. Plan Condensate Drainage Properly
A cassette AC removes moisture from indoor air during cooling. This moisture collects as condensate and must be safely discharged through the drain system.
Many modern cassette AC units include a built-in drain pump, particularly where gravity-based drainage cannot easily be achieved. However, having a drain pump does not mean that the drainage system can be installed without proper planning.
Why is proper drainage important?
Incorrect drainage can lead to:
Water leakage from the indoor unit
Water dripping through the false ceiling
Dampness and ceiling damage
Unpleasant odors
Drain blockages
Frequent maintenance issues
Where the installation design permits, the drain pipe should be routed with the appropriate slope for reliable water flow. If gravity drainage is not possible, the unit’s specified drain pump arrangement and piping requirements should be followed.
Important installation check
The drain pipe diameter, maximum lift, pipe routing, slope requirements, and drain pump limitations can vary between models.
Therefore, always follow the manufacturer’s installation specifications rather than applying one standard measurement to every cassette AC.
A professional installer should also test the drainage system before closing the false ceiling.
3. Position the Cassette AC at the Center of the Room
One of the major advantages of a ceiling cassette AC is its ability to distribute air across multiple directions.
For many 4-way cassette AC models, positioning the indoor unit close to the center of the conditioned area can help achieve more uniform airflow.
Why does placement matter?
If a cassette AC is installed too close to a wall or in an unsuitable corner, airflow distribution may become less balanced.
This can result in:
Uneven cooling
Hot spots within the room
Reduced comfort
Airflow reaching walls or obstacles too quickly
Less effective coverage of the usable space
A centrally positioned cassette can generally provide better coverage because the air can be distributed across the room.
But the center is not always the answer
Room layout matters.
Before deciding the exact location, consider:
Room dimensions
Seating arrangement
Partitions
Lighting fixtures
Ceiling beams
Fans
Electrical fixtures
Glass walls and heat-generating areas
Doors and frequently opened entrances
Multiple cassette units in larger spaces
For larger commercial areas, multiple cassette AC units may be required instead of relying on a single high-capacity unit.
The goal should be proper airflow distribution across the occupied area, not simply placing the AC at the geometric center of the room.
4. Check Refrigerant Piping and Electrical Requirements
Another critical part of cassette AC installation is correctly planning the refrigerant piping and electrical system.
The refrigerant pipe connects the indoor and outdoor units. Pipe diameter, maximum pipe length, vertical height difference, insulation, and additional refrigerant requirements depend on the particular AC model.
Some cassette AC systems use R32 refrigerant, while other models may use different refrigerants. Therefore, never select or charge refrigerant based only on the general category of the AC.
Why is refrigerant piping important?
Incorrect refrigerant piping can affect:
Cooling performance
Energy efficiency
Compressor operation
System reliability
Long-term maintenance
The installer should follow the manufacturer’s specified pipe sizes, maximum permissible lengths, height differences, insulation requirements, and refrigerant charging procedures.
Electrical sizing is equally important
Cassette ACs can require substantial electrical power depending on their capacity and configuration.
Before installation, check:
Rated voltage
Phase requirement
Rated current
Maximum current
Recommended cable size
Recommended breaker/protection
Earthing requirements
Dedicated power supply requirements
The electrical installation should be designed according to the manufacturer’s specifications and applicable electrical safety requirements.
Do not select cable or breaker size based only on the AC tonnage. The actual electrical specifications of the selected model should be used.
Other Things to Check Before Installing a Cassette AC
The four points above are essential, but a proper site assessment should go further.
Calculate the Required AC Capacity
Choosing an AC based only on room size can sometimes lead to an incorrectly sized system.
Cooling requirements can be affected by:
Room dimensions
Ceiling height
Number of occupants
Number and size of windows
Direct sunlight
Glass surfaces
Computers and electrical equipment
Lighting load
Door openings
Building insulation
Type of commercial activity
For offices, showrooms, restaurants, and other commercial spaces, a professional cooling-load assessment can help determine the appropriate capacity.
An undersized AC may struggle to maintain the desired temperature, while an oversized system may not always provide the expected comfort or humidity control.
Plan Outdoor Unit Location
The indoor cassette is only one part of the system. The outdoor unit also needs an appropriate location.
The outdoor unit should have sufficient space for:
Air intake
Hot-air discharge
Service access
Maintenance
Safe installation
Proper refrigerant piping
Avoid locations where the outdoor unit’s discharged hot air can immediately recirculate back into the intake.
For commercial buildings, the outdoor unit location should also be planned with consideration for noise, accessibility, structural support, and building regulations.
Keep Maintenance Access in Mind
A common mistake is to focus entirely on making the installation look clean and forget about future maintenance.
Because cassette AC indoor units are located above the false ceiling, technicians need suitable access to components such as:
Filters
Drain system
Drain pump
Electrical connections
Refrigerant connections
Fan and indoor coil components
A properly planned service access area can make future maintenance significantly easier.
Do not completely seal the false ceiling around the AC without considering how the unit will be serviced later.
What Should You Discuss With the AC Installer?
Before installation begins, ask the installer these questions:
Installation Checklist
What cassette AC capacity is suitable for my room?
Is the false ceiling height sufficient?
Where will the indoor unit be positioned?
Is the location suitable for uniform airflow?
How will the condensate drain be routed?
Does this model have a built-in drain pump?
What drain pipe arrangement is required?
What refrigerant does this particular model use?
What refrigerant pipe sizes are required?
What is the maximum permissible pipe length?
Is there a significant height difference between indoor and outdoor units?
What electrical supply does the model require?
What cable and protection specifications are recommended?
Where will the outdoor unit be installed?
How will technicians access the indoor unit for maintenance?
Has the drainage system been tested before closing the false ceiling?
Getting these details confirmed before installation can prevent many avoidable problems later.
Common Cassette AC Installation Mistakes to Avoid
1. Installing before checking ceiling clearance
The false ceiling may look suitable from below but may not provide enough space for the complete indoor unit and piping arrangement.
2. Ignoring drain planning
A beautiful ceiling can quickly become a repair project if condensate drainage is not properly planned.
3. Installing the unit too close to a wall
This can compromise the intended airflow distribution of the cassette unit.
4. Selecting electrical components without checking the model
Cable and protection requirements should be based on the manufacturer’s electrical specifications.
5. Choosing refrigerant piping based on assumptions
Pipe diameter and allowable pipe length vary between AC models.
6. Forgetting future servicing
A cassette AC installed above an inaccessible ceiling can make routine maintenance unnecessarily difficult.
7. Choosing capacity without considering the actual room conditions
Commercial spaces can have significantly different cooling loads even when their floor areas are similar.
Why Professional Cassette AC Installation Matters
A cassette AC is more than an indoor unit mounted in a ceiling. It is a complete system involving the indoor unit, outdoor unit, refrigerant circuit, condensate drainage, electrical supply, controls, and airflow design.
Professional installation helps ensure that these components work together correctly.
A proper installation process should include:
Site inspection
Cooling requirement assessment
Indoor and outdoor unit location planning
False ceiling clearance verification
Refrigerant piping planning
Drainage planning
Electrical requirement verification
Indoor unit installation
Outdoor unit installation
Drainage testing
Refrigerant and piping checks
Electrical and safety checks
Test operation
Customer handover and maintenance guidance
Final Thoughts
If you are planning to install a cassette AC, don’t start by simply choosing an AC capacity and cutting the false ceiling.
The installation location, available ceiling space, drainage route, airflow distribution, refrigerant piping, electrical requirements, outdoor unit location, and future maintenance access should all be considered before installation.
A little planning before installation can help avoid expensive ceiling modifications, drainage problems, poor airflow, and maintenance difficulties later.
Planning a cassette AC for an office, showroom, retail store, restaurant, or commercial space? A proper site assessment can help you choose the right system and plan the installation correctly.
Quick Takeaway

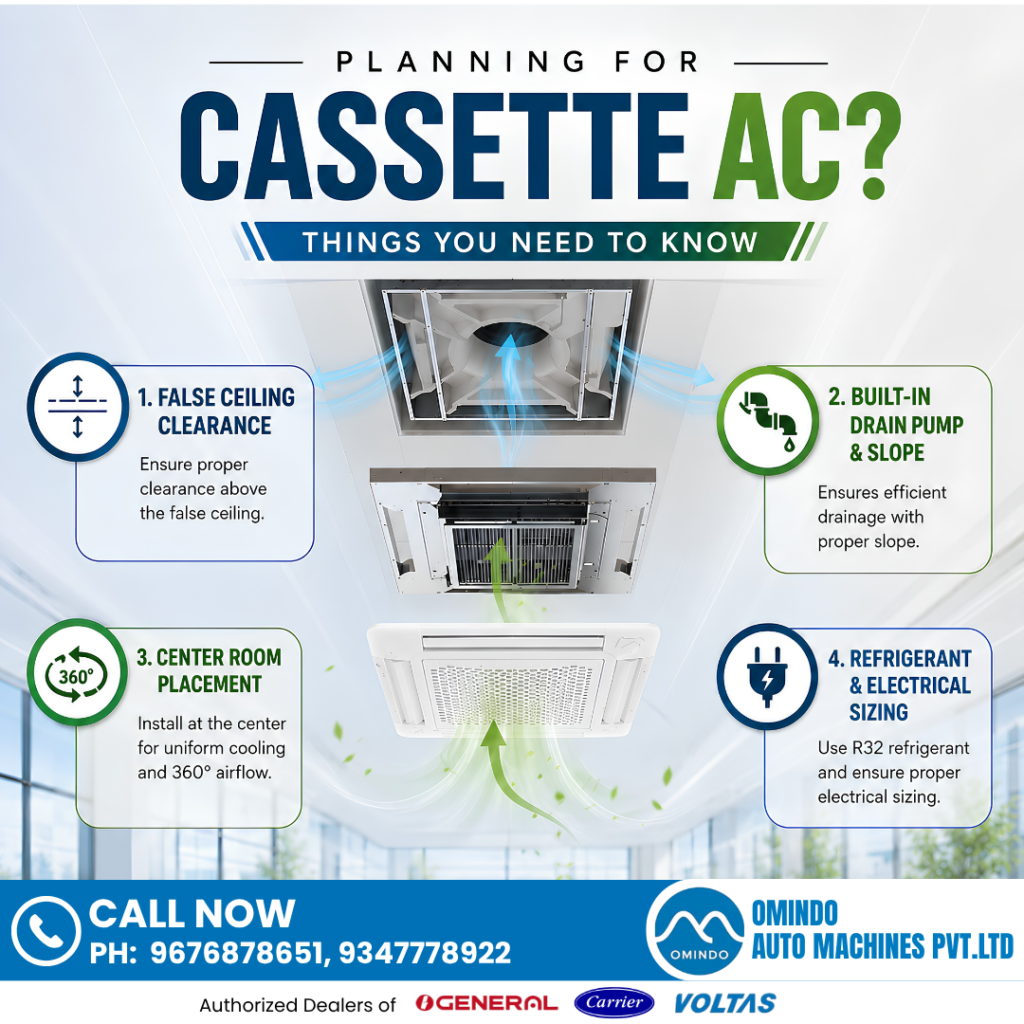

Before installing a cassette AC, remember these four essentials:
1. False Ceiling Clearance
Ensure adequate space for the indoor unit, piping, drainage, electrical connections, and servicing.
2. Drainage & Drain Pump
Plan condensate drainage correctly and follow the specific drain-pump and piping requirements of the model.
3. Center Placement & Airflow
Position the cassette to achieve effective and uniform airflow across the occupied area.
4. Refrigerant & Electrical Sizing
Use the manufacturer’s specifications for refrigerant piping, refrigerant type, electrical supply, cables, and protection.
When these factors are planned correctly, your cassette AC installation can deliver better comfort, reliable operation, and easier maintenance for years to come.
